Animal feed pellet mill machine Line 100~1000KG/H

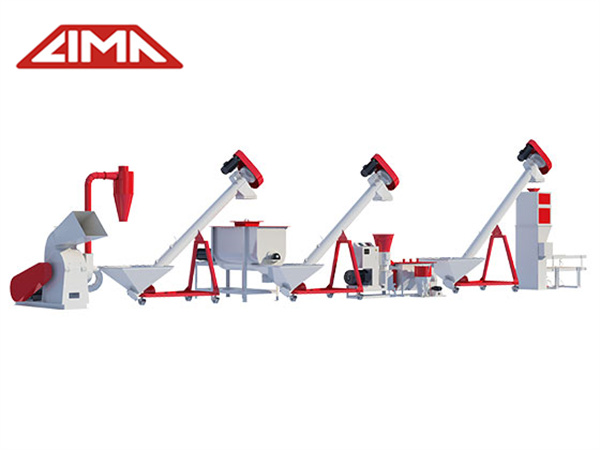

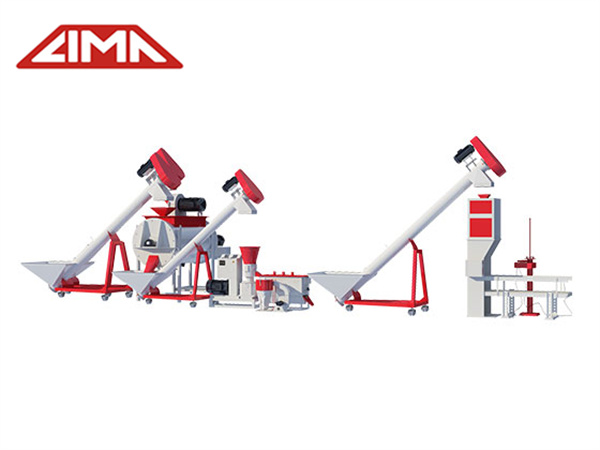

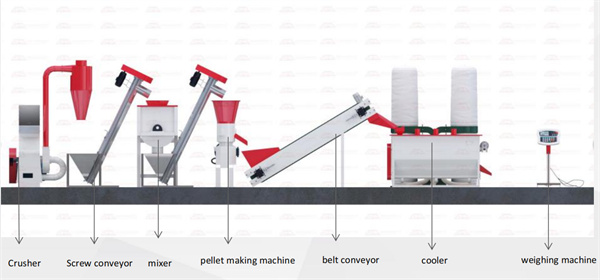

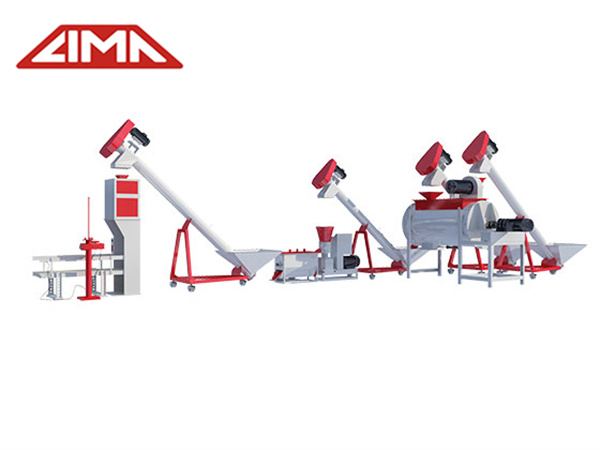

Completed Poultry Feed Pellet Production Line include feed hammer mill, feed mixer, feed pellet machine,cooling machine, packing system. it can make all kinds of animal feed pellet. usually for poultry feed, cattle,cow,sheep, pig. etc. The capacity ranges from 100 kg/h to 10,000 kg/h.

Send Email Chat Now

Product Description:

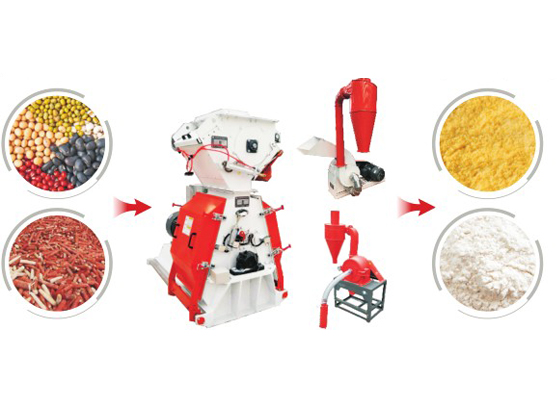

1. Poultry feed hammer mill used to pulverize raw materials such as grains into powder.
The following is the crushing process: the raw materials in the pulverized silo are fed into a pulverizer to be pulverized into powdery raw materials, and then distributed to each batching bin by a conveyor according to the raw material type, and the main equipment is a pulverizer. The purpose of the comminution is to increase the specific surface area of the feed and to improve the utilization of the feed by the animal. Increasing the contact area of digestive enzymes with raw materials, reducing the chewing energy consumption of the animal feeding process, is conducive to improving the feed harvester, and the pulverized raw materials are easily matured in the granulation and tempering stage, and the pulverized feed can be large in the granulation process. The reduction in power consumption can improve the quality and efficiency of subsequent processes.

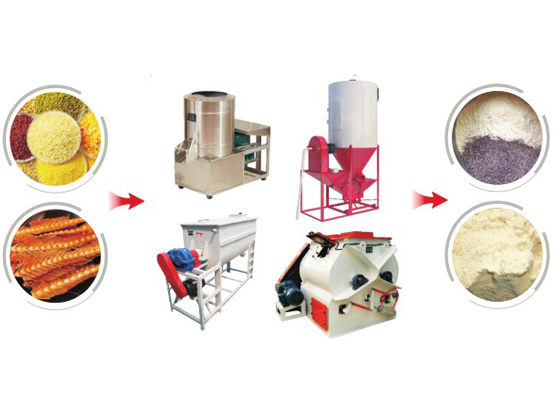

2. Poultry feed mixer machine is used to stir and mix the pulverized raw materials evenly
The following is mixing process: the process of uniformly mixing the ingredients of the batching scale, the core equipment is the mixer, the good mixer can mix the feed evenly in a short time, and the poor mixing opportunity leads to the deterioration of the product quality. Ultimately affect the feeding effect. Mixing should be controlled well, the uniformity is gradually reached the best uniformity with the increase of mixing time, but after mixing evenly and then prolonging the mixing time, the delamination of raw materials will occur. Feeding sequence of the mixer: the raw materials in the formula are added first, then the trace elements are added, the particle size is increased first, and then the particle size is small, the specific gravity is small, and the addition ratio is large, try to avoid delamination: The reason why the chicken material is easy to stratify) The particle size of each raw material in the mixture is close to each other, and the addition of the oil and fat can reduce the delamination of the raw material. Avoid over-mixing, release the product before the optimal mixing time, in order to complete the mixing during transportation, and add anti-layering equipment to the mixing process to minimize the storage time of the product in the silo.
3. Poultry feed pellet mill machine is processed the mixed raw material powder into pelletized feedThe pellet feed granulation is easy to digest. During the granulation process, the raw materials of the granules must be stirred for a period of time by a suitable amount of water at a high temperature. The raw materials of the granules are ripened and softened and bonded, and the mechanical energy generated during granulation can increase the raw materials. The degree of damage is easier to digest. If the feed is easier to digest, the animal can absorb its nutrients more quickly and the “meat ratio” will be lower. The taste is good and the taste is good. The pellets have a good scent. The granulation process can also spray other materials on the surface of the granules. The taste is better and the nutrients are more uniform: the ingredients in the formula can be mixed together, so that each granule is Stable nutrients can be achieved, animals can not be selected when eating, and the composition of the formula can use a variety of raw materials. Granulation increases the density of the pellets, and the density of the pellets is increased by the extrusion of the ring membrane, thereby improving the storage capacity of the silo. The pellets have little loss during transportation, and the fluidity is good for transportation and is suitable for the automatic feeding system. Eliminate some viruses because the high temperature kills the toxins in the raw materials, making the pellets safer for animals.

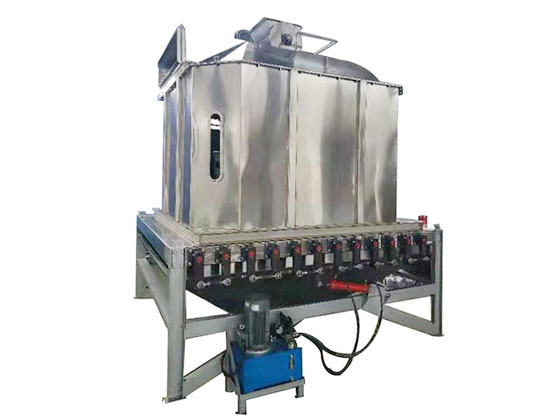

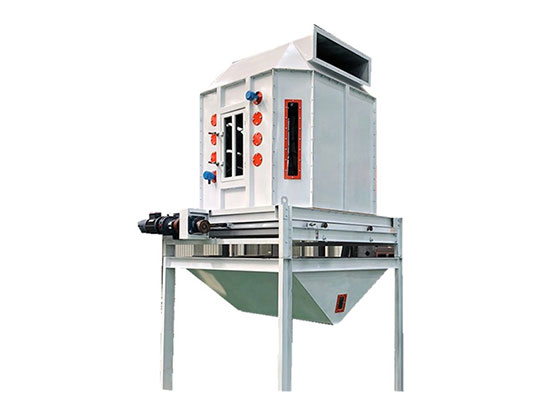

4. Poultry cooling machine is to cool down the pelleted feed.
Usually, during the granulation process, a large amount of heat is generated due to the introduction of high-temperature, high-humidity steam, and the material is just discharged from the granulator, the water content is 16%-18%, and the temperature is as high as 75 C-85C, under these conditions, the pellet feed is easily deformed and broken, and it will also cause sticking and mildew during storage. It must be reduced to below 14% and the temperature is lowered to 8 °C below the temperature. This requires cooling.

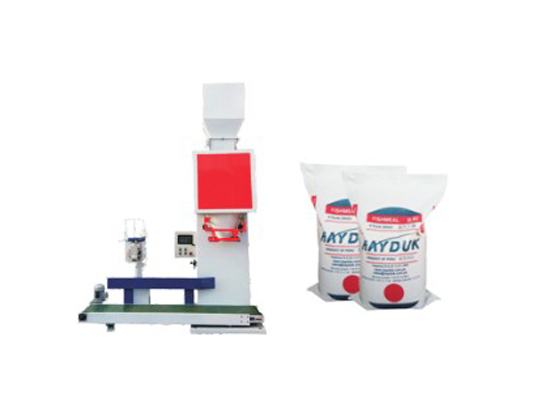

5. Poultry feed packaging machine
The following is finished packaging process: The process of weighing, bagging and slitting the finished product by automatic packaging equipment. Generally, the finished products are shipped in two forms: bulk and bagged. Due to the restrictions of transportation equipment and large-scale feeding, the bagging method is often adopted. The automatic weighing system can weigh different feeds according to customer needs.
